Introduction to BS 5250
Definition and Purpose of BS 5250

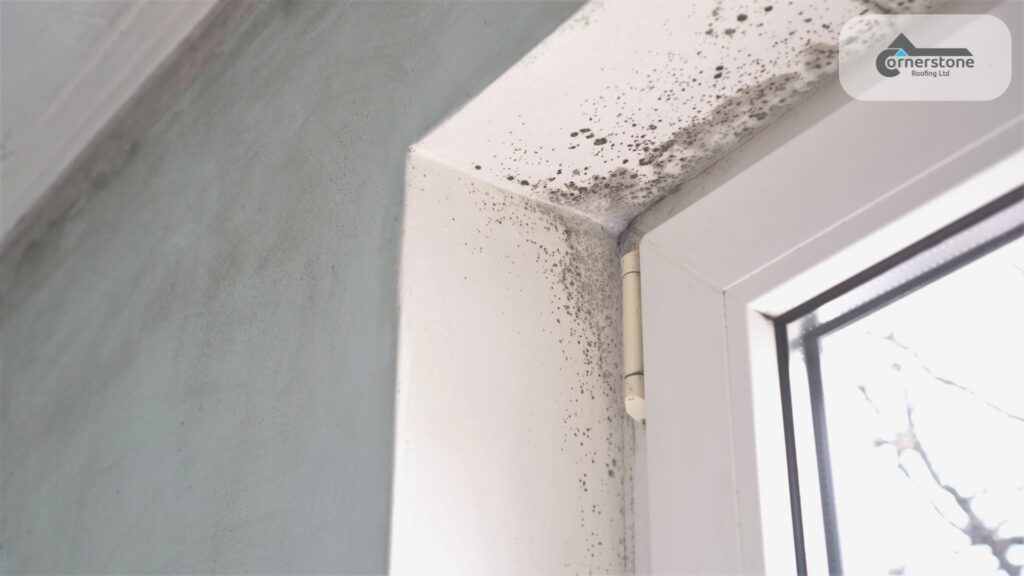

BS 5250 is the authoritative code of practice for managing moisture in UK buildings. This comprehensive standard provides guidance on the causes and effects of surface and interstitial condensation as well as other sources of moisture. It is designed to help building designers, constructors, and operators manage moisture risk effectively through proper design, construction, and operational practices. The primary goal is to safeguard the health of occupants by preventing mould growth, excessive moisture build-up, and condensation.
Latest Revision (2021) and Its Significance
The latest revision of BS 5250, issued in 2021, represents a significant step forward in moisture management. This update was driven by the evolving nature of building construction and the increasing focus on energy efficiency. As the methods and materials used in building construction change, the risks associated with moisture can also change. Therefore, the revision aimed to provide more nuanced guidance that takes into account the interaction of multiple building elements and the evolving ways in which buildings are used. This updated standard ensures that modern buildings remain healthy environments over their lifespan, considering the modern emphasis on energy-efficient construction methods and materials.
Key Changes in BS 5250:2021
Expanded Scope to Include Various Moisture Sources
Historically, BS 5250 primarily focused on diagnosing and mitigating the risks of condensation in buildings. The 2021 revision, however, adopts a more holistic approach to moisture management. This new focus goes beyond condensation to address all possible sources of moisture—including external sources like precipitation and ground moisture, and internal sources such as activities by occupants and moisture from construction processes. By broadening the scope, the standard now promotes a more integrated approach to moisture risk assessment, ensuring that all potential moisture issues are anticipated and effectively managed.
Integrated Approach to Moisture Risk Assessment
One of the standout features of BS 5250:2021 is its integrated approach to moisture risk assessment. It adopts a ‘whole-building’ methodology, addressing moisture management through a lifecycle lens that includes assessment, design, construction, and serviceability. This broadens the scope of traditional risk assessments, which often isolate individual components rather than viewing the building as an interconnected system.
By considering the entire building envelope and the multiple pathways through which moisture can move, the standard aims to identify potential risk points more accurately. The integrated framework directs building designers and constructors to take into account the cumulative impact of various moisture sources and design elements, thereby reducing the likelihood of unforeseen moisture-related issues.
Consideration of ‘As Designed’ vs ‘As Built’ Conditions
Another critical change in BS 5250:2021 is the careful distinction between ‘as designed in theory‘ and ‘as built/in service‘ conditions. While designers may have an idealised version of how a building should perform, real-world conditions often differ due to workmanship variability, user behaviour, and unforeseen circumstances. The new standards highlight this division, providing essential guidelines for addressing potential discrepancies between design intent and actual performance.
Sources of Moisture in Buildings
Managing moisture in buildings is crucial to prevent structural damage, mould growth, and health issues. BS 5250:2021 emphasises understanding the various sources of moisture, which can be broadly categorised into internal and external sources.
Internal Sources of Moisture
- Occupant Activities
Occupants themselves are significant contributors to indoor moisture. Regular activities such as cooking, bathing, and even respiration introduce substantial water vapour into the air. High humidity levels from these activities can lead to condensation and subsequent moisture problems if not managed effectively. Cooking generates steam, and without adequate ventilation, it can elevate moisture levels inside living spaces. Bathrooms are another critical area, as hot showers produce large amounts of steam, contributing to increased indoor humidity.
- Construction Moisture
Moisture can also originate from the construction phase. Materials like concrete, plaster, and timber hold water, which gradually evaporates into the indoor environment as the building dries out. This type of moisture needs careful management to avoid prolonged damp conditions that could foster mould growth or deterioration of building materials.
External Sources of Moisture
- Precipitation
Rainwater is a primary external moisture source. It can infiltrate building envelopes through leaks in roofs, walls, and windows. Proper detailing and installation of flashings, sealants, and rainwater drainage systems are essential to prevent water ingress. Poorly maintained gutters or downpipes can cause water to overflow and penetrate external walls, creating internal dampness, which leads to moisture-related issues.
- Ground Moisture
Groundwater can enter buildings through capillary action or direct intrusion. Materials like concrete and masonry can absorb water from the ground, especially in areas with high water tables or inadequate drainage. This is particularly problematic for foundations and basements, where moisture barriers and proper site drainage strategies are necessary to mitigate the risks.
Importance of Identifying and Managing Different Moisture Sources
Identifying the specific sources of moisture is fundamental for effective control and prevention measures. Each source requires tailored management strategies. For internal sources like occupant activities, ventilation systems such as extract fans in kitchens and bathrooms can help mitigate excess humidity. In dealing with construction moisture, ensuring a sufficient drying time and maintaining adequate ventilation during the early phases of occupation is crucial.
For external moisture sources, robust building design and construction practices play a pivotal role. Waterproofing measures, such as damp-proof courses, proper site grading, and the use of moisture-resistant materials, can safeguard a structure against ground moisture. Regular maintenance to keep rainwater management systems functioning correctly is equally vital.
Moisture Management in Pitched Roofs
Effective moisture management in pitched roofs is crucial for maintaining the structural integrity and longevity of buildings. This chapter delves into the specific considerations and best practices for managing moisture in pitched roofs, focusing on ventilation requirements, the use of vapour-permeable and vapour-resistant underlays, as well as ensuring airtightness and the prevention of thermal bridging.
Ventilation Requirements for Different Roof Types
Proper ventilation in pitched roofs is essential for controlling moisture levels and preventing issues such as mould growth and material degradation. The BS 5250:2021 standard stipulates that no additional ventilation is required if a vapour-permeable underlay is used, provided it is either fully supported on insulation or draped.
However, if a High Resistance (HR) underlay is used, specific minimum ventilation rates must be adhered to:
- At least 10,000 mm²/m at low level.
- An additional 5,000 mm²/m at high level.
These guidelines ensure the effective removal of moisture-laden air, especially in cold roof constructions.
Use of Vapour-Permeable and Vapour-Resistant Underlays
Understanding the function of underlays is key to moisture management in pitched roofs. Vapour-permeable underlays allow water vapour to escape from the roof structure while preventing liquid water from entering. This dual functionality helps maintain an energy-efficient and healthy indoor environment by reducing moisture accumulation within the roofing assembly.
Conversely, vapour-resistant underlays act as barriers, preventing moisture from moving through the roofing layers. These are typically used in areas prone to high humidity or where external moisture intrusion is a significant concern.
Importance of Air Tightness and Thermal Bridging Prevention
Achieving airtightness and preventing thermal bridging are critical components of a moisture management strategy in pitched roofs. Airtight construction prevents warm, moist indoor air from infiltrating the roof assembly, reducing the risk of condensation on cooler surfaces within the roofing envelope.
Thermal bridging occurs when there are breaks or penetrations in the building envelope, causing heat to escape through conductive materials such as steel or wood. To mitigate this:
- Insulation should be installed continuously to avoid gaps.
- Structural junctions, such as between walls and roofs, should be carefully designed and constructed.
- Using vapour barriers and sealing penetrations for pipes and cables can help reduce condensation and thermal bridging.
By addressing these aspects, builders and designers can create more energy-efficient, durable, and comfortable buildings.
Design Considerations for Moisture Control
Continuous Insulation and Minimising Thermal Bridging
Creating a continuous layer of insulation is essential to prevent thermal bridging. A thermal bridge, also known as a heat or cold bridge, occurs when there is a disruption in the insulation layer, allowing heat to transfer more easily through the building fabric. Common areas where thermal bridging can occur include junctions between walls, floors, roofs, windows, doors, and around openings for cables and pipes.
To minimise thermal bridging, it is critical to use materials with low thermal conductivity. For instance, rigid foam insulation, insulated concrete forms (ICFs), or thermal breaks can be utilised to create a seamless thermal barrier. Insulated sheathing at the junctions and load-bearing insulation blocks such as Marmox Thermoblock can effectively limit heat transfer, thus enhancing energy efficiency. It is important to choose the right type and thickness of insulation to ensure that it is effective.
Sealing Openings and Maintaining Air Tightness
Maintaining air tightness is another crucial aspect of moisture control. Air leakage can significantly impact a building’s thermal performance by permitting moist air to infiltrate the structure, leading to potential condensation issues and increased energy costs.
To achieve optimal air tightness, various systems and products can be employed, such as high-performance membranes and tapes. Airtight membranes that are vapour-open yet breathable can seal joints and openings, preventing uncontrolled air exchange. Additionally, maintaining a maximum allowable air permeability of 0.6 air changes per hour at 50 Pascals (ACH50) as per the Passivhaus standard is essential for ensuring minimal air leakage.
Ventilation Strategies for Roof Voids and Living Spaces
Effective ventilation strategies must be incorporated into the design to manage moisture within roof voids and living spaces. Proper ventilation prevents moisture build-up and helps in maintaining an optimal indoor environment. Depending on the roof type, different ventilation requirements must be met to ensure adequate airflow, thus reducing the risk of condensation and moisture damage.
Ventilation in roof voids can be achieved through various methods, including ridge vents, soffit vents, and gable vents. Ensuring balanced intake and exhaust ventilation will establish a continuous airflow, removing excess moisture from the roof space. Similarly, living spaces require a well-planned ventilation strategy to manage humidity levels, particularly in high-moisture areas like kitchens and bathrooms. Utilising mechanical ventilation systems like heat recovery ventilators (HRVs) can enhance indoor air quality while providing moisture control.
Implementation and Best Practices
Calculation Methods for Assessing Moisture Risk
Assessing moisture risk is a critical step in the implementation phase of moisture management. BS 5250:2021 outlines several methods for evaluating condensation risk, tailored to different roof types and scenarios.
These methods include:
- Prescriptive Guidance: Often based on historical data and experience, this method is used for commonly encountered applications where previous outcomes have established clear guidelines. It involves following established practices that have consistently managed moisture effectively over time.
- Simplified Calculations: These are used for less complex buildings and involve basic calculations that assess the moisture level against set thresholds. These calculations often consider factors like temperature, humidity, and ventilation rates to predict condensation risk.
- Advanced Modelling: For more intricate or unique building designs, advanced computational models are utilised. These models consider a wide array of variables, including thermal performance, material properties, and dynamic climate conditions, providing a comprehensive condensation risk assessment. A study on predictive meta-models for probabilistic moisture risk assessments highlights the importance of these advanced methods in accurately predicting moisture behaviour in buildings.
Workmanship Considerations in Loft Spaces
Proper workmanship is essential in maintaining moisture control within loft spaces. Key considerations include:
- Correct Installation of Insulation: Insulation must be continuous and snugly fitted to avoid gaps that can lead to thermal bridging. Any discontinuities could result in cold spots where condensation might form.
- Sealing and Airtightness: Ensuring that all openings, such as those around pipes and cables, are thoroughly sealed reduces the risk of moist air entering the loft space. Airtight membranes and high-performance tapes are commonly used to achieve this.
- Ventilation: Adequate ventilation must be provided to allow moist air to escape. The type and amount of ventilation depend on the roof design and use of the loft space. Natural ventilation methods, including soffit vents and ridge vents, alongside mechanical ventilation options, should be considered as per the specific requirements.
Impact on Roofing Specifications and Installation
Review of Existing Specifications Against New Guidance
The latest revision of BS 5250 has necessitated a thorough review of existing roofing specifications. The updated standard now encompasses a more holistic approach to moisture management, considering all forms of water and their interactions. This expansion addresses both internal and external moisture sources and mandates a more integrated assessment of moisture risks throughout the building envelope.
Roofing professionals must ensure that current specifications align with the new guidelines. This involves verifying that previously acceptable practices still adhere to the latest recommendations and identifying any areas where the updated guidance necessitates changes. This could include reassessments of material choices, installation methods, and the overall design approach to effectively manage moisture.
Importance of Proper Ventilation Levels
Proper ventilation is now explicitly underscored in BS 5250 to prevent condensation and related moisture issues within roofing systems. Adequate roof ventilation helps to expel moist air from roof voids, thus reducing the risks of wood rot, mould growth, and structural degradation. The updated guidance stresses that ensuring continuous airflow throughout the roof space is paramount. Both the design phase and the installation process should incorporate measures to facilitate adequate ventilation.
- Roof voids must incorporate sufficient ventilation openings, especially in critical areas like changes in roof slope and junctions with walls.
- The use of vapour-permeable underlays can simplify ventilation requirements by allowing for moisture to escape while preventing water ingress.
- Counter battens should be of appropriate size (minimum 25mm) to facilitate airflow above the underlay and below the tiles or slates.
Role of Roofing Professionals in Moisture Management
Roofing professionals play a critical role in the successful implementation of BS 5250’s guidance. Their responsibility extends beyond mere installation to include:
- Ensuring all materials meet the updated standards for thermal conductivity and vapour resistivity.
- Performing rigorous inspections during and after installation to verify compliance with moisture management strategies.
- Employing advanced calculation methods and modelling software to predict and mitigate moisture risks in complex designs.
- Communicating effectively with other parts of the building team to maintain an integrated approach to moisture control within the entire building envelope.
In conclusion, by bringing their expertise and adherence to updated standards, roofing professionals can significantly contribute to enhancing the longevity, durability, and health of buildings. As BS 5250 evolves, so too must the practices and processes of those in the roofing industry, ensuring that moisture management remains a top priority.
